Automatic system P2Z up to 10 bar coolant pressure
How does the BEMA P2Z device work?
While the machine is being set up, the cooling jet is simultaneously directed by remote control on to the desired point on the tool.
The position is programmed by pressing the OK button.
This process may be repeated 99 times.
The machine can now work its way through its components and the cooling jet is still directed correctly onto the tool.

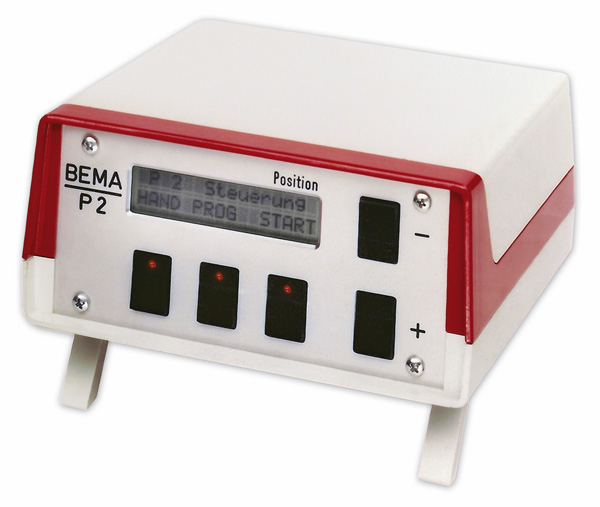

P2Z consists of the following:
- LCD display to show swivel position, tool number and effective running period
- position keys for setting the swivel position
- keys for setting the various types of program and for influencing the program.
(Programming instructions supplied!)

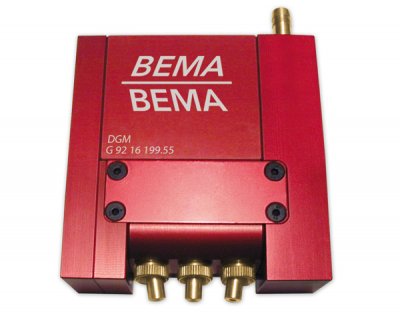

Swivel-mounted coolant nozzles consist of the following:
- coolant nozzles
- servo motor
- coolant connection
Example of throughflow quantities per individual nozzle:
3,2 mm | 2 bar pressure 3 bar pressure 4 bar pressure | 7 l/min 9 l/min 10 l/min |
5,0 mm | 2 bar pressure 3 bar pressure 4 bar pressure | 18 l/min 22 l/min 25 l/min |
6,5 mm | 2 bar pressure 3 bar pressure 4 bar pressure | 30 l/min 35 l/min 42 l/min |
9,0 mm | 2 bar pressure 3 bar pressure 4 bar pressure | 56 l/min 70 l/min 80 l/min |
