Manual system P05 up to 10 bar coolant pressure
How does the BEMA P05 device work?
A device fitted to the side of the milling head with one coolant outlet nozzle, a device that can be radially positioned at any angle. The particular position is regulated by remote control. No more reaching into running machines.
P05 consists of the following:
- manual rotating potentiometer
- mains switch
- 220V connection

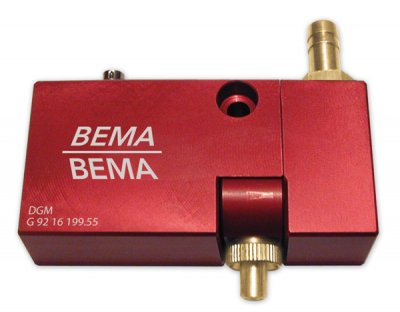

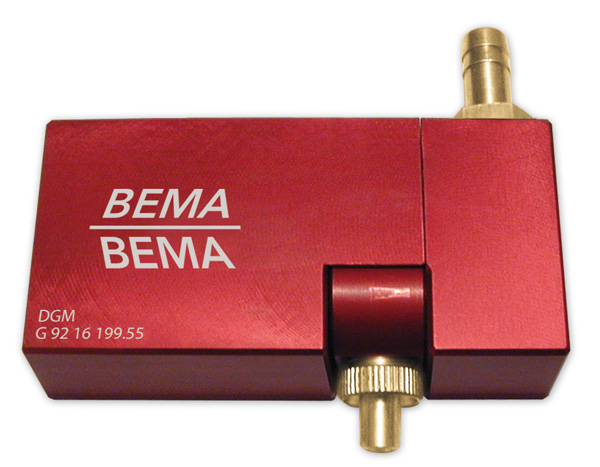

Swivel-mounted coolant nozzles consist of the following:
- coolant nozzles
- servo motor
- coolant connection
Example of throughflow quantities per individual nozzle:
3,2 mm | 2 bar pressure 3 bar pressure 4 bar pressure | 7 l/min 9 l/min 10 l/min |
5,0 mm | 2 bar pressure 3 bar pressure 4 bar pressure | 18 l/min 22 l/min 25 l/min |
6,5 mm | 2 bar Druck 3 bar Druck 4 bar Druck | 30 l/min 35 l/min 42 l/min |
9,0 mm | 2 bar pressure 3 bar pressure 4 bar pressure | 56 l/min 70 l/min 80 l/min |
